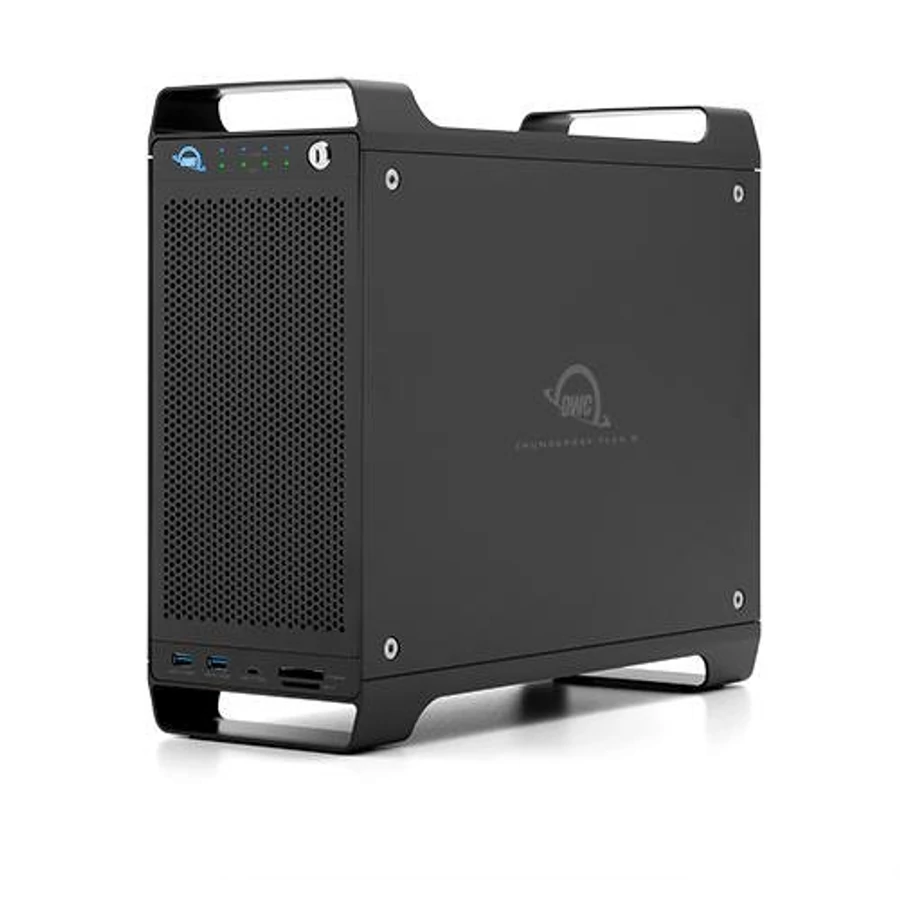

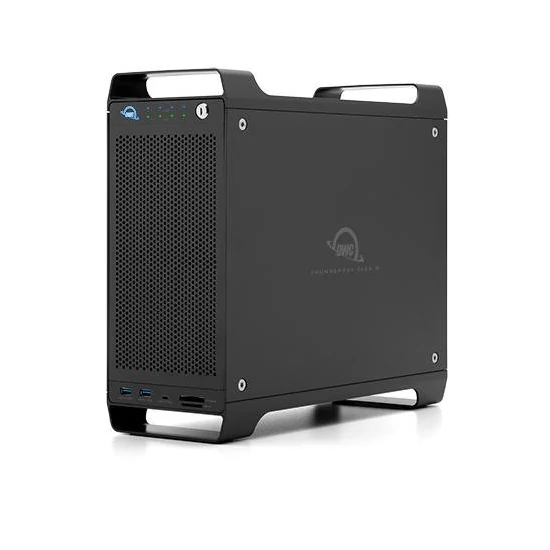

0TB OWC ThunderBay Flex, flexible 8-bay Storage/Dock/PCIe Enclosure with 2x TB3 Ports Featuring SoftRAID XT.

672.590 Ft
db
Kosárba teszem
SKU: OWCTB3F80C000
Elérhetőség:
Rendelés előtt kérjük, érdeklődj az aktuális készletről!
 Nincs készleten
Szállítási díj: 1.990 Ft
Várható szállítás: 2024. november 25.
Gyártó: OWC
Hozzáadom a kedvencekhez

Leírás és Paraméterek

Mac OS Compatibility macOS 10.15 Catalina
Other Requirements macOS 10.15.1 or later required.
Windows Compatibility Limited support on compatible Windows systems. This device is not Thunderbolt certified for Windows. A Thunderbolt device may not function properly or at all if used with an operating system for which the device has not been certified.
Host Port Requirements Thunderbolt 3
Driver Required The SoftRAID driver is installed with the SoftRAID application. Drivers for PCIe cards must be Thunderbolt-aware to function
Number of Bays 8
Drive Mechanisms Supported Bay 1 thru 8 - 3.5-inch or 2.5-inch SATA drives, Bay 1 thru 4 - 2.5-inch U.2 NVMe SSD or M.2 NVMe SSD with U.2 Adapter, Bay 1 thru 8 - 3.5-inch or 2.5-inch SAS drives - Requires SAS drive controller card (available separately)
U.2 Drive Bay PCIe Spec Bay 1 - PCIe x4 lane, Bay 2, 3, 4 - PCIe x1 lane
Hot Swap Support Yes
RAID Levels Supported RAID 0, RAID 1, RAID 0+1, RAID 4, RAID 5, JBOD
Bootable Dependent upon configuration. Independent Mac volumes should boot in most scenarios.
Chipset Thunderbolt:Intel JHL7440, PCIe Switch:ASMedia ASM-2824, USB Controller:Genesys Logic GL-3590
Ports (2) Thunderbolt 3 Ports, (1) USB 3.2 Gen 2 Type-C Port, (2) USB 3.2 Gen 2 Type-A Ports, (1) DisplayPort Port
Memory Card Slots (1) Secure Digital (SD) 4.0 (UHS-II), (1) CFexpress Slot
PCIe Slots (1) PCIe Gen 3 x16 connector/x4 lane slot (empty), (1) PCIe Gen 3 x16 connector/x4 lane slot with SATA controller card
PCIe Cards Supported Supports one full-height, half-length, single-width card (driverless or with Thunderbolt-aware driver). GPUs not supported
Hot Swap Support Yes
Data Transfer Rate (Max) Thunderbolt 3:40 Gb/s (or 5000 MB/s), Secure Digital (SD) 4.0 (UHS-II):985MB/s, CFexpress:985MB/s
Display Support DisplayPort 1.4:Up to 8K @ 60Hz or 4K @ 120Hz, Thunderbolt 3:Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
Housing Color Black
Certifications CE, FCC, VCCI, RCM, BSMI
Cooling (1) 120mm cooling fan
Security Slot Yes
Power Button Yes
MTBF (Mean Time Between Failures) Varies depending on drive mechanism installed
Contact Start Stops Varies depending on drive mechanism installed
Power Supply Internal UL-listed universal auto-switching power supply
AC Input 100-240V, 47-63Hz, 4.0A-8.0A
DC Output +12V, 42A
Wattage 504 Watts
Power Delivery (2) Thunderbolt 3 Ports (15W, 85W) Environmental (Operating):Temperature (°F) 50° — 95° (°C) 10° — 35°, Altitude -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft), Humidity 8% to 90% non-condensing
Environmental (Non-Operating) Temperature (°F) −40° — 149° (°C) −40° — 65°, Altitude -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft), Humidity 5% to 95% non-condensing
Dimensions Height:34.9 cm (13.7 in), Width:14.9 cm (5.9 in), Length:39.0 cm (15.4 in)
Weight 9.2 kg (20.26 lbs)
Acoustics Varies depending on drive mechanism installed
Notes GPUs are not supported
